Color-Coated Corrugated Steel Sheets

1. Product Overview

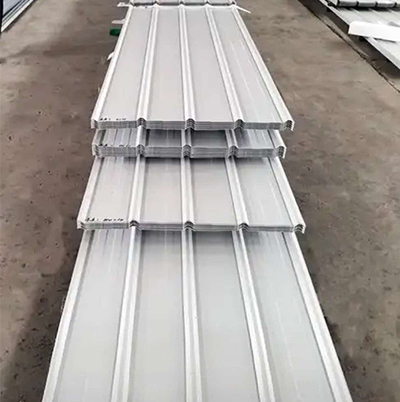

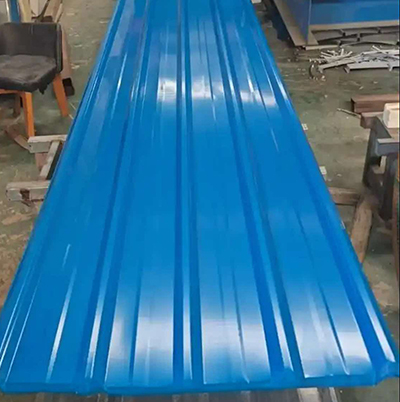

Color-coated corrugated steel sheets are roll-formed metal panels manufactured from galvanized or aluminum-zinc-coated steel substrates with a pre-painted surface coating. The corrugated profile provides structural stiffness and makes these sheets suitable for roof and wall cladding in a wide range of industrial, commercial and agricultural buildings.

They are widely used in steel structure workshops, warehouses, temporary buildings, canopies and building renovation projects.

Main Features:

• Galvanized or aluminum-zinc-coated steel substrate options, depending on product specifications

• Pre-painted surface in a variety of colors

• Corrugated profiles for roof and wall cladding

• Customized sheet lengths available

• Compatible with roofing accessories and insulation systems

2. Key Product Advantages

1. Fast Installation and Dry Construction

Color-coated corrugated steel sheets are lightweight and available in large panel lengths, allowing efficient lifting, handling and installation. The dry construction method eliminates the need for conventional wet trades during panel installation, helping shorten construction schedules.

They are particularly suitable for industrial buildings, warehouses and roof renovation projects where installation efficiency is important.

2. Lightweight Construction

Compared with many traditional roofing materials, color-coated steel sheets have a relatively low dead load. Their use can help reduce roof loads and may allow optimization of supporting beams and purlins, subject to structural design requirements.

3. Multiple Color Options and a Clean Appearance

Available colors may include blue, gray, white, rust red and dark gray, depending on the coating system and production range.

Matching roof and wall panels can create a consistent exterior appearance for industrial buildings, commercial facilities and agricultural structures.

4. Cost-Effective Roofing and Wall Cladding

Color-coated corrugated steel sheets are a practical choice for projects requiring economical, lightweight and easy-to-install building envelope materials. They can offer lower initial material costs than some alternative roofing systems, depending on material specifications, installation requirements and local market conditions.

5. Integrated Weather Protection with Compatible Accessories

When correctly designed and installed with appropriate side laps, end laps, sealing strips, ridge caps, gutters, flashing and edge trims, the panels can form an effective roof and wall cladding system.

Proper panel overlap, fastener selection and waterproofing details are essential to help prevent water ingress.

6. Factory Processing and Customized Lengths

Panels can be cut to specified lengths according to project requirements. Longer panels can reduce the number of end laps across the roof slope, helping simplify installation and reduce potential leakage points when correctly installed.

3. Performance Considerations and Limitations

1. Limited Thermal and Acoustic Insulation

Single-layer color-coated steel sheets provide limited thermal insulation and sound absorption. Interior spaces may become hot under direct sunlight, while rainfall can generate noticeable impact noise on the roof.

Recommended solution: Add glass wool, rock wool or another suitable insulation and acoustic treatment system. Alternatively, consider insulated sandwich panels for improved thermal and acoustic performance.

2. Coating Weathering and Corrosion Resistance

Coating durability depends on the paint system, coating thickness, substrate, environmental exposure and maintenance conditions. Standard polyester coatings may experience fading, chalking or other weathering effects over time. Aggressive environments, including certain chemical plants, acid-pickling facilities and livestock buildings, may accelerate coating deterioration and corrosion.

Recommended solution: Select a suitable coating system and substrate based on the actual exposure conditions. Higher-performance options, such as PVDF coatings or aluminum-zinc-coated steel, may be considered where appropriate. Product suitability should be confirmed against the specific chemical and environmental conditions.

3. Thermal Expansion and Contraction

Steel panels expand and contract with temperature changes. Incorrect fastening, insufficient allowance for movement, poorly designed overlaps or deteriorated fastener washers can contribute to water leakage over time.

Recommended solution: Follow the specified installation procedures, use compatible roofing fasteners with suitable sealing washers, and apply appropriate overlap and movement details according to panel design and project conditions.

4. Resistance to Hail and Impact

Impact resistance varies with steel thickness, corrugation profile, support spacing and impact severity. Thin-gauge panels may dent under severe hail or hard impacts, potentially damaging the protective coating and increasing the risk of localized corrosion.

Recommended solution: Select an appropriate panel thickness and profile for the expected environmental loads. Inspect and repair coating damage when necessary.

5. Fire Performance

Bare single-layer steel sheets are non-combustible as a material, but a single-layer roofing sheet does not provide a complete fire-resistance-rated roof assembly. Fire performance depends on the entire roof system, including insulation, coatings, supporting structure and assembly design.

Recommended solution: For buildings with specific fire-safety requirements, consider suitable rock wool sandwich panels or other tested roof systems that meet the applicable fire performance and building code requirements.

4. Applications

Recommended Applications

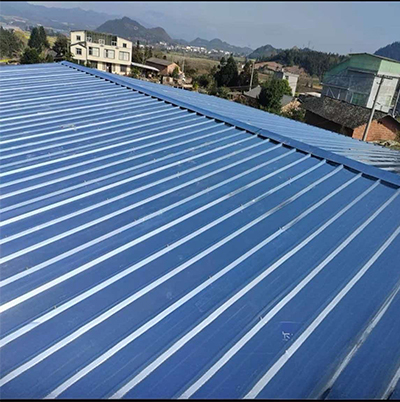

• Steel structure workshop roofs and wall cladding

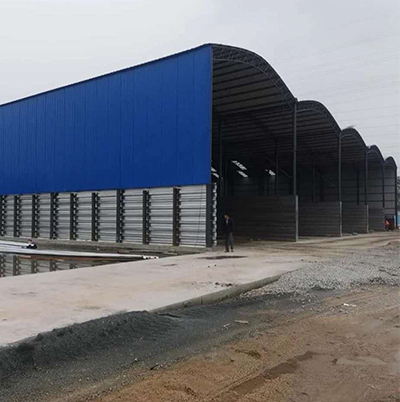

• Industrial buildings and warehouses

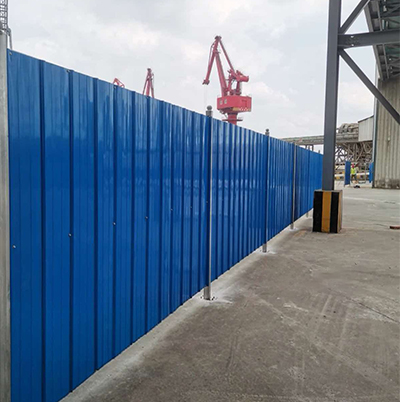

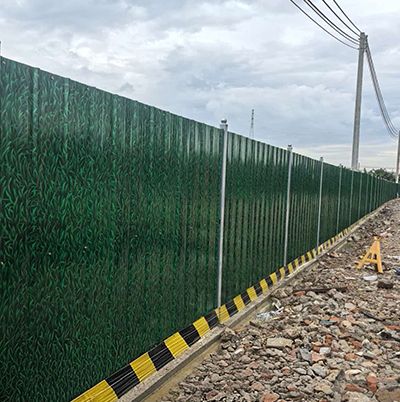

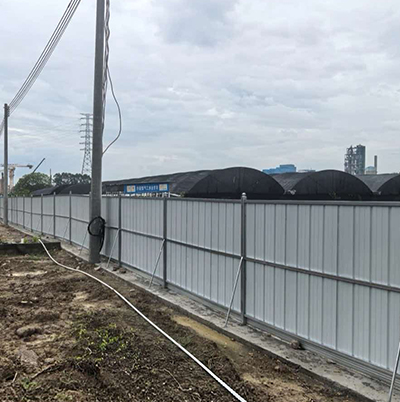

• Construction site fencing and temporary enclosures

• Agricultural markets and covered trading areas

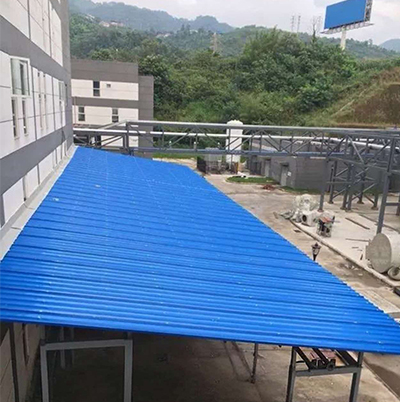

• Carports, canopies and parking shelters

• Agricultural buildings and livestock facilities, subject to corrosion and ventilation requirements

• Temporary construction shelters

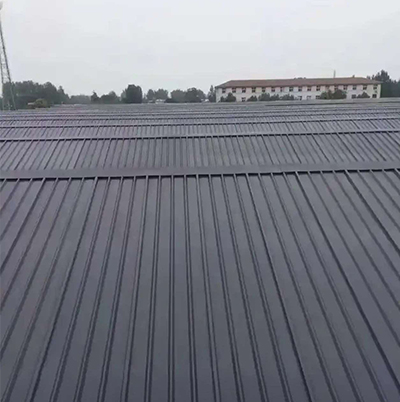

• Existing roof renovation and replacement projects

Applications Requiring Special Consideration

Highly corrosive industrial environments: Standard coating systems may not provide adequate durability. A suitable substrate and high-performance coating system should be selected based on the specific exposure conditions. PVDF-coated or aluminum-zinc-coated products may be considered where technically appropriate.

Buildings requiring high levels of acoustic comfort: Single-layer steel sheets alone may not meet the required noise-control performance. Additional sound-absorbing insulation or a properly designed insulated roof assembly is recommended.

Buildings with specific fire-resistance requirements: The complete roof assembly must be evaluated against applicable local building codes and fire safety standards.

5. Customized Supply and Roofing Accessories

We can supply color-coated corrugated steel sheets in various profiles, colors and customized lengths according to project requirements.

Compatible roofing accessories may include:

• Ridge caps and ridge flashing

• Gutters and downpipes

• Edge trims and flashing

• Roofing screws and sealing washers

• Waterproof sealing strips

• Glass wool or rock wool insulation, subject to availability

• Matching wall cladding panels

For project-based procurement, panels and accessories can be coordinated to help achieve a consistent appearance and simplify installation.

Please share your required panel profile, steel thickness, coating specifications, color, sheet length, estimated quantity and intended application. We can help identify suitable specifications for your roofing or wall cladding project.
